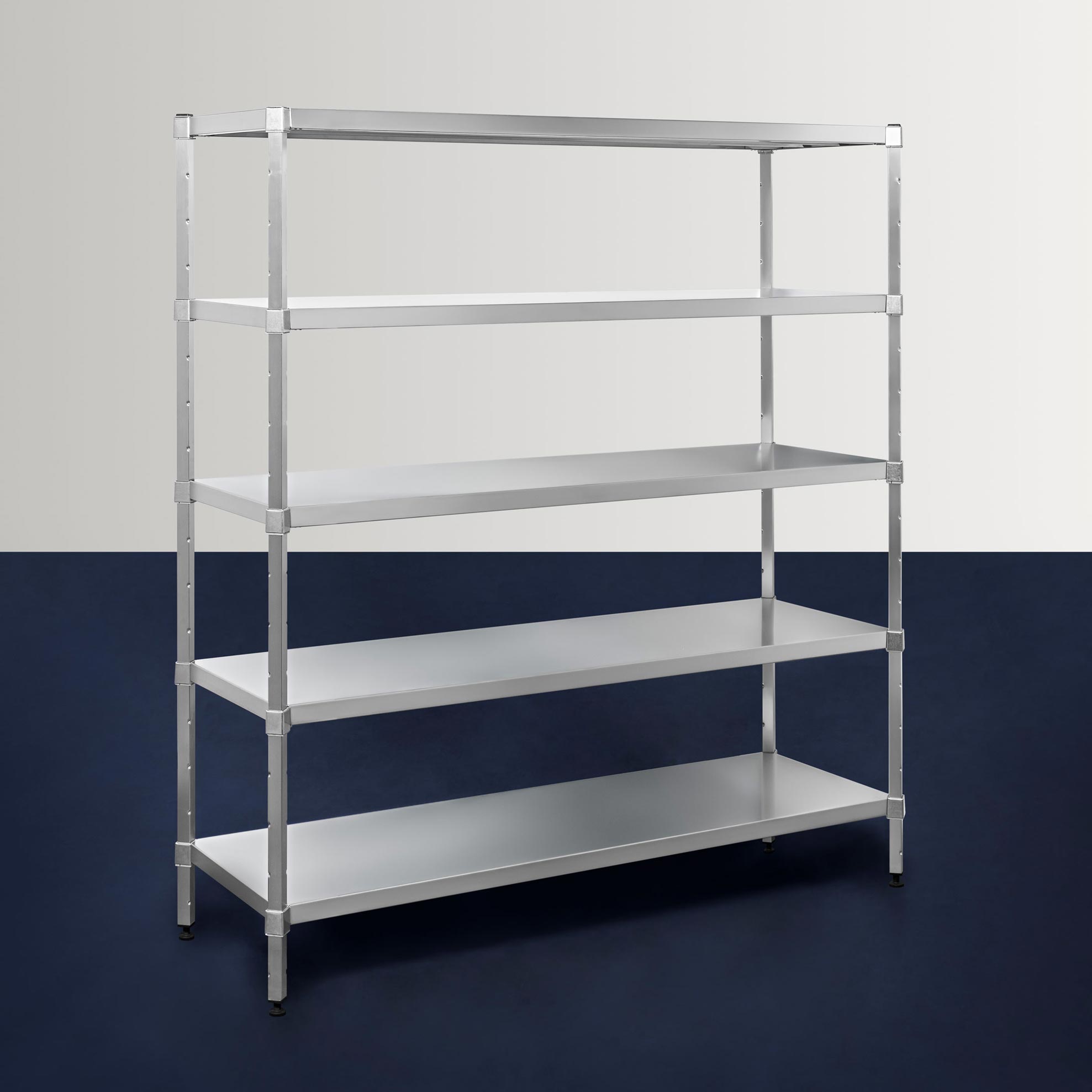

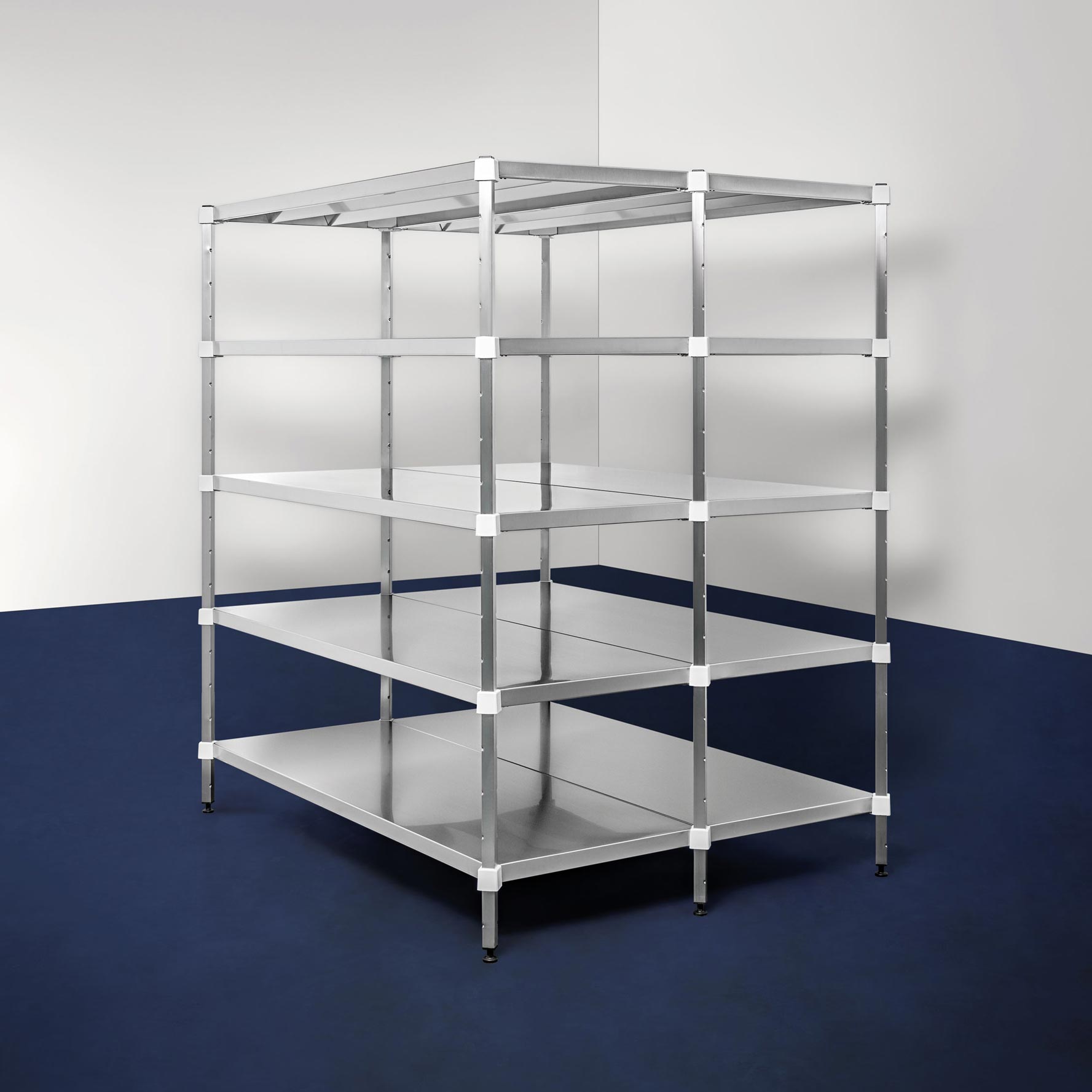

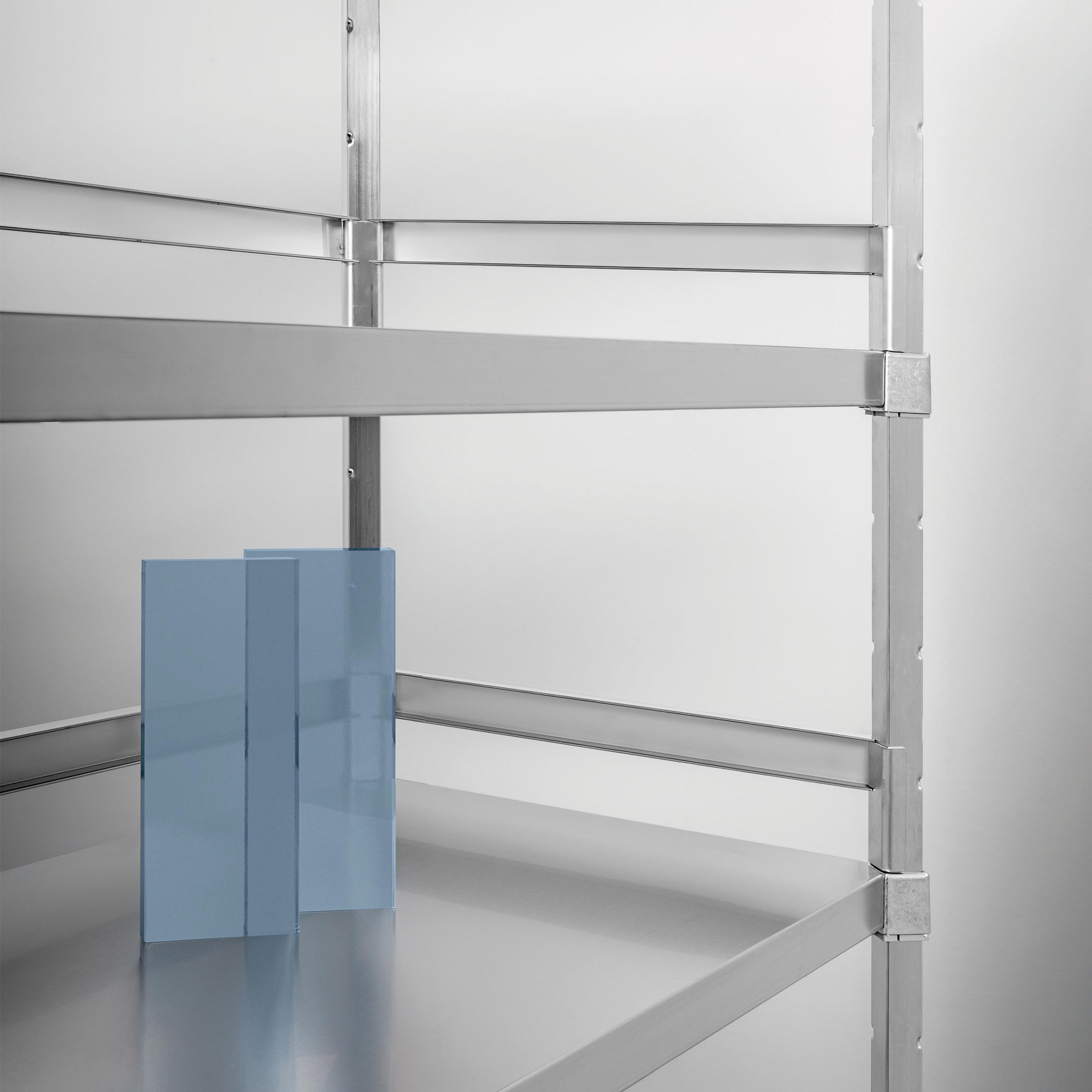

Inox Standard
AISI 304 stainless steel uprights, fixing components and shelves
Modular shelving units, fully constructed with 18/10 stainless steel structure and shelves, ideal for regular loads. The Inox Standard is characterised by its rapid and easy construction and 90° and 360° component parts which make the most of the available space.
STRUCTURE
Tube Section: 30 x 30 x 1 mm
Heights: 1400 - 1600 - 1800 - 2000 mm
More info about quick assembly +
SHELVES
Thickness: 40 mm
Lengths: from 600 to 2000 mm
Depths: 300 - 400 - 500 - 600 mm
More info about shelf types +
TOTAL LOAD 800 kg
More info about load capacity +

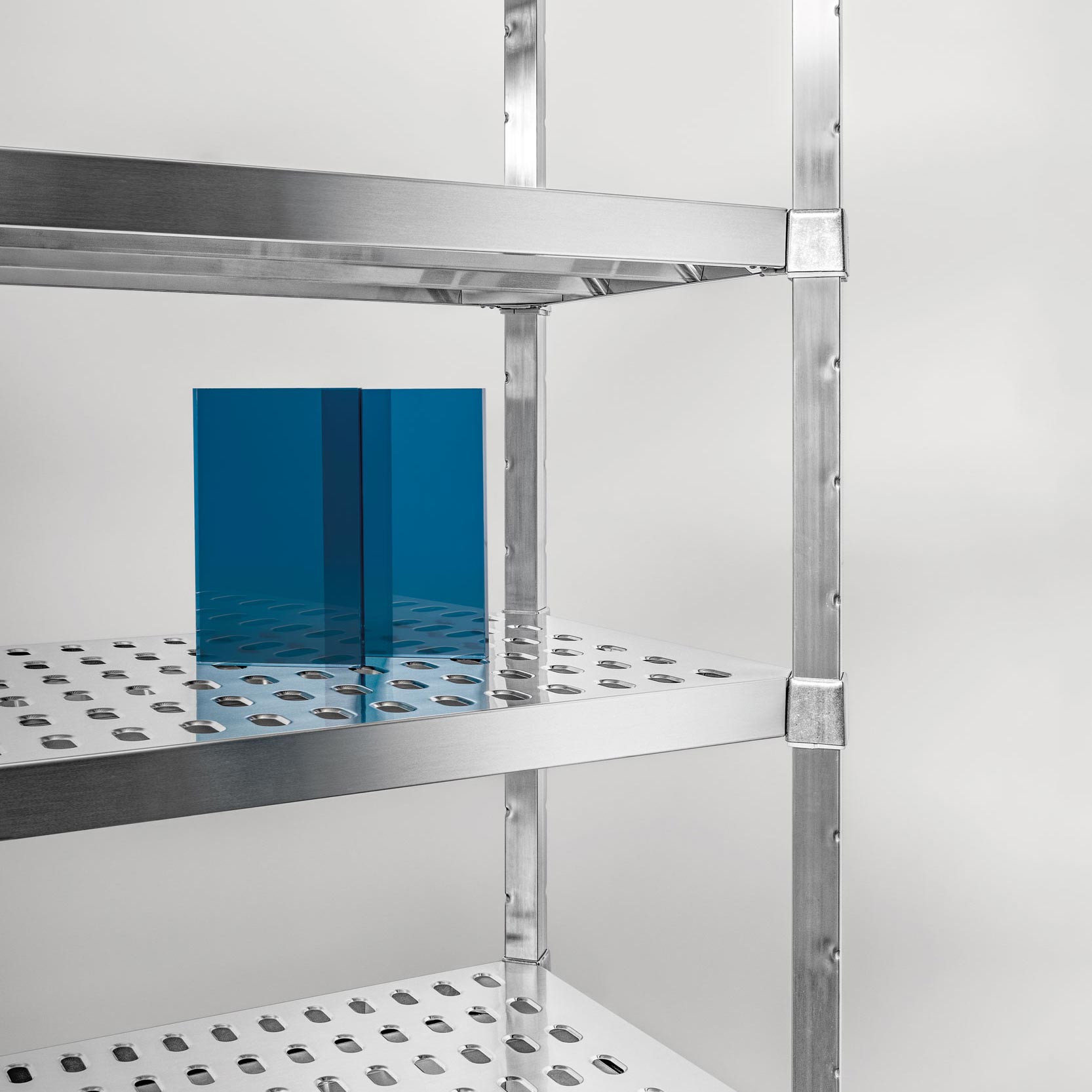

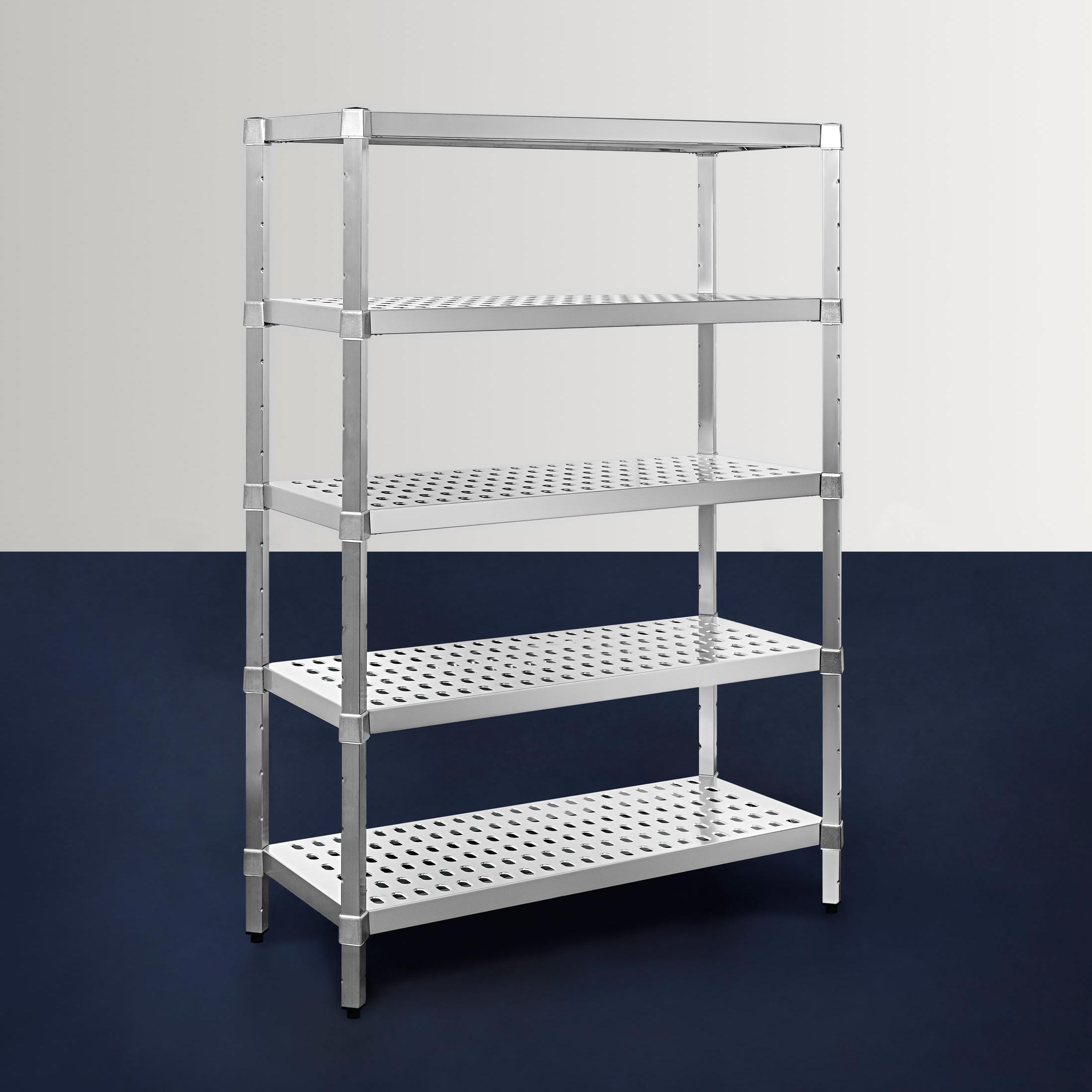

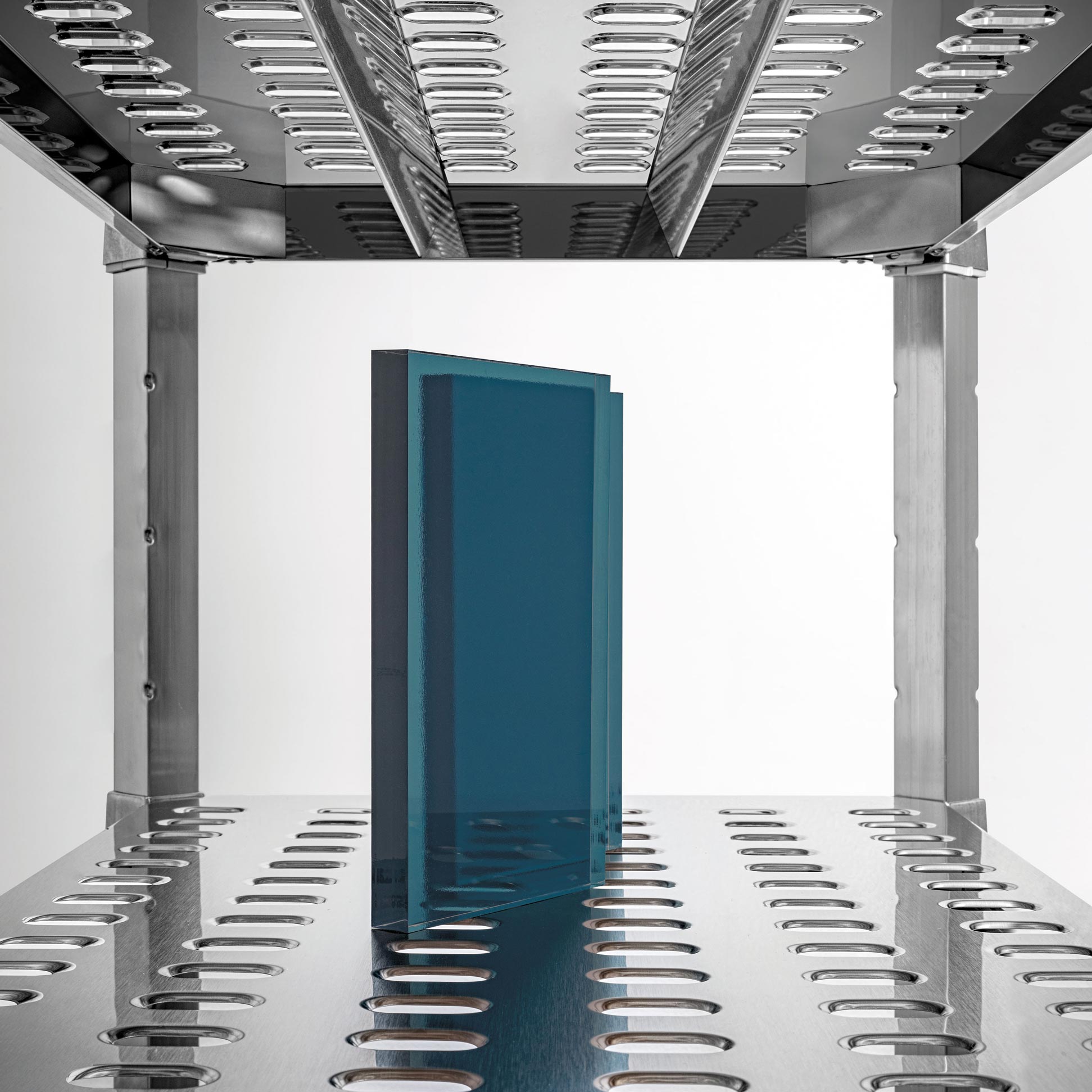

Inox Plus
AISI 304 stainless steel uprights, fixing components and shelves
Modular shelving units, fully constructed with 18/10 stainless steel structure and shelves, ideal for heavy loads. The Inox Plus is characterised by its rapid and easy construction and 90° and 360° component parts which make the most of the available space.
STRUCTURE
Tube Section: 40 x 40 x 1.2 mm
Heights: 1400 - 1600 - 1800 - 2000 mm
More info about quick assembly +
SHELVES
Thickness: 50 mm
Lengths: from 600 to 2000 mm
Depths: 300 - 400 - 500 - 600 mm
More info about shelf types +

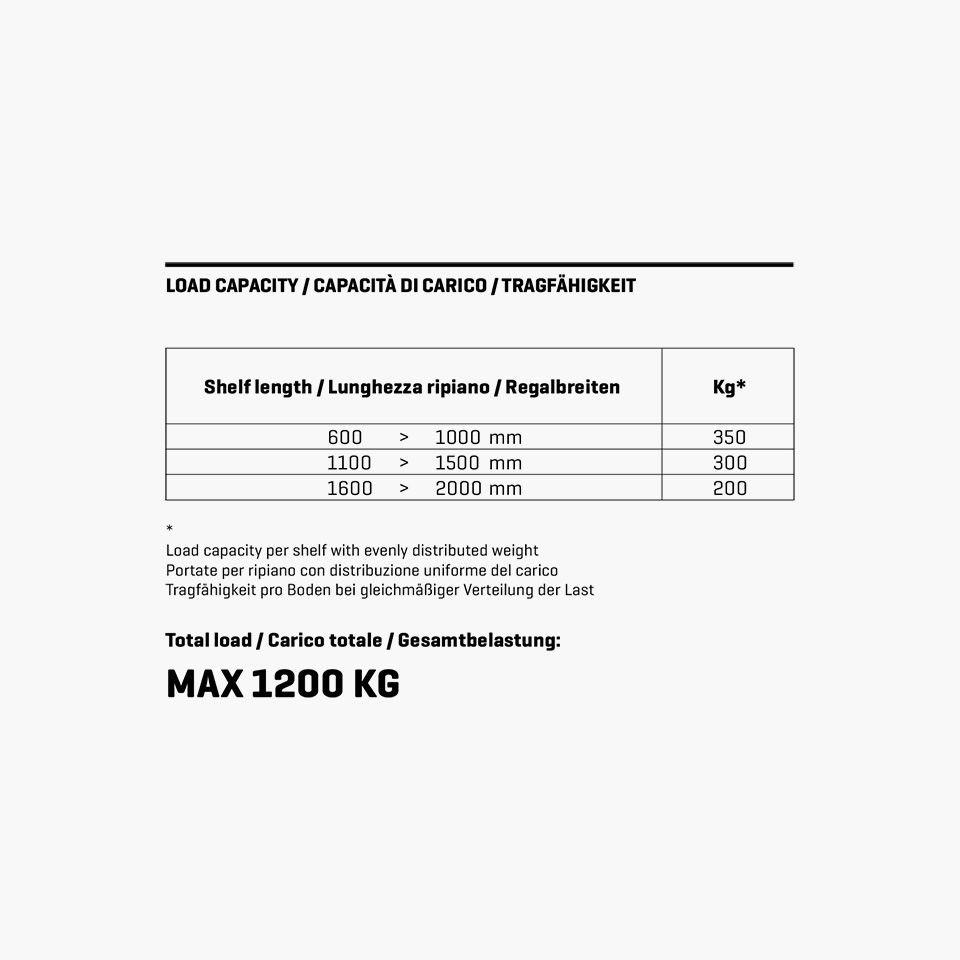

TOTAL LOAD 1200 kg
More info about load capacity +

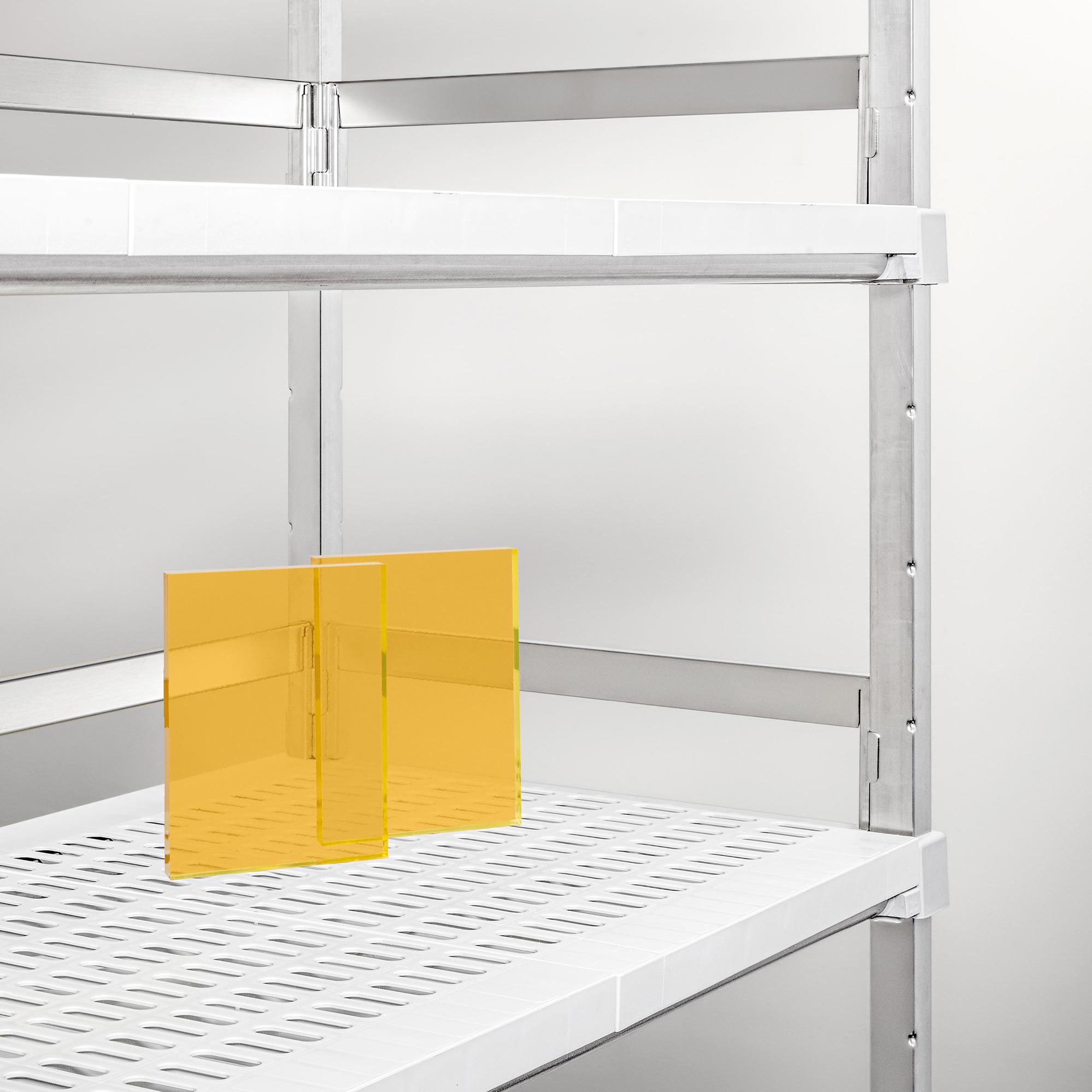

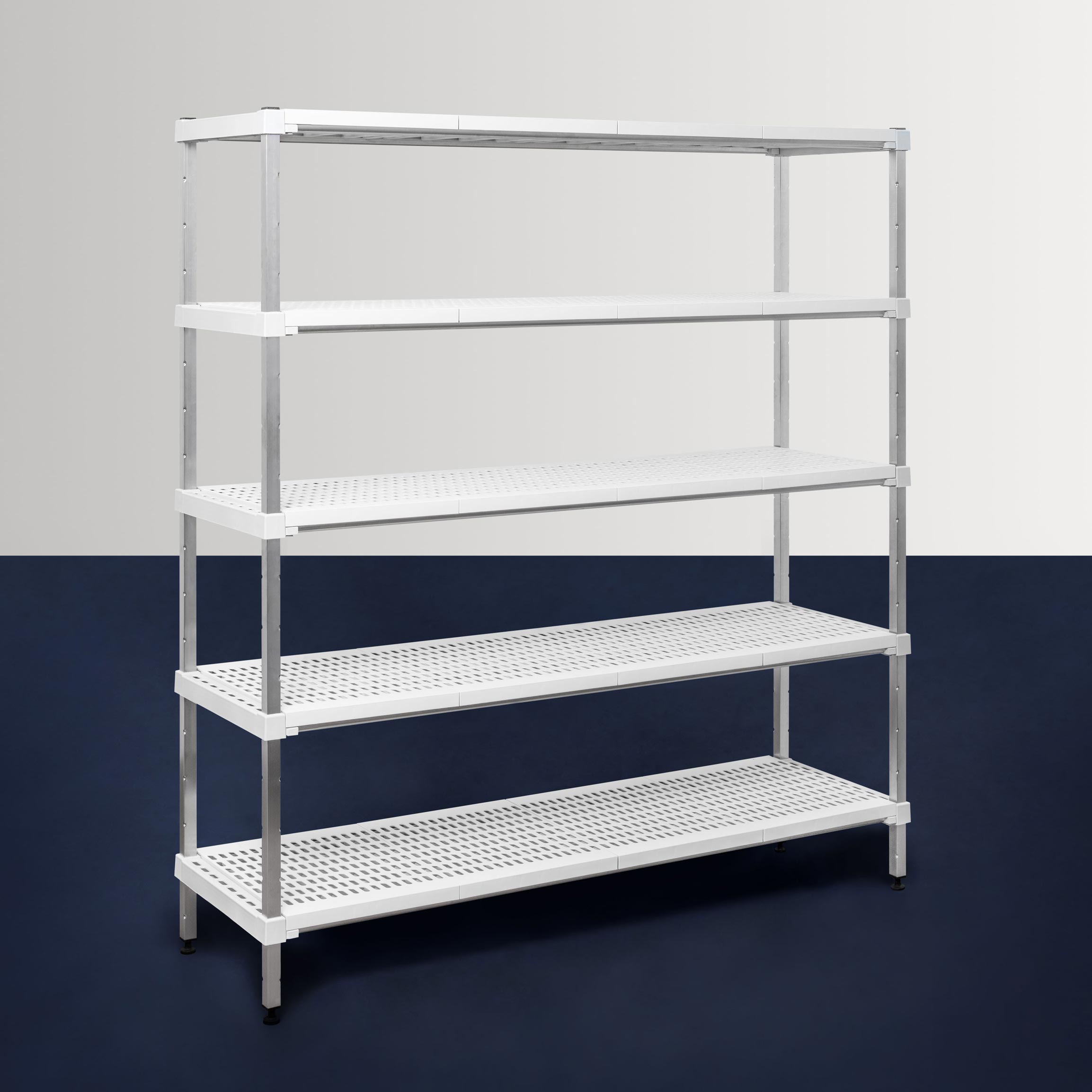

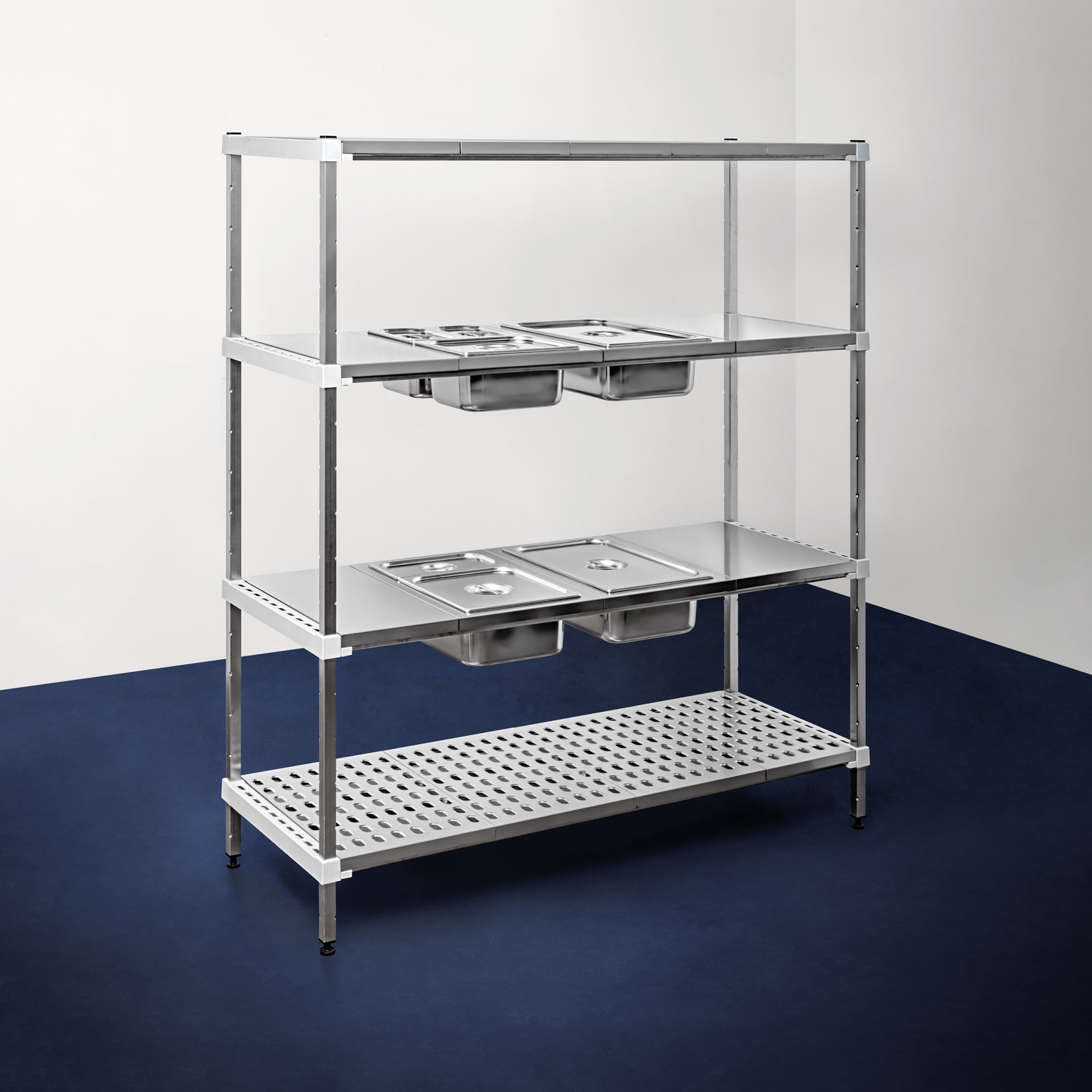

Eco Inox
AISI 304 stainless steel structure, polypropylene depth bars, polypropylene or AISI 304 stainless steel shelves
Modular shelving units, formed with a tubular 18/10 stainless steel holding structure and perforated polypropylene modular shelves for normal loads. The shelves are easy to wash even in the dishwasher. The shelving units, equipped with feet or wheels, can be finished with various accessories.
STRUCTURE
Tube Section: 30 x 30 x 1 mm
Depths: 300 - 400 - 500 - 600
Heights: 1400 - 1600 - 1800 - 2000 mm
More info about quick assembly +
SHELVES
Thickness: 40 mm
Lengths: from 600 to 2000 mm
Depths: 300 - 400 - 500 - 600 mm
More info about shelf types +
TOTAL LOAD 1000 kg
More info about load capacity +

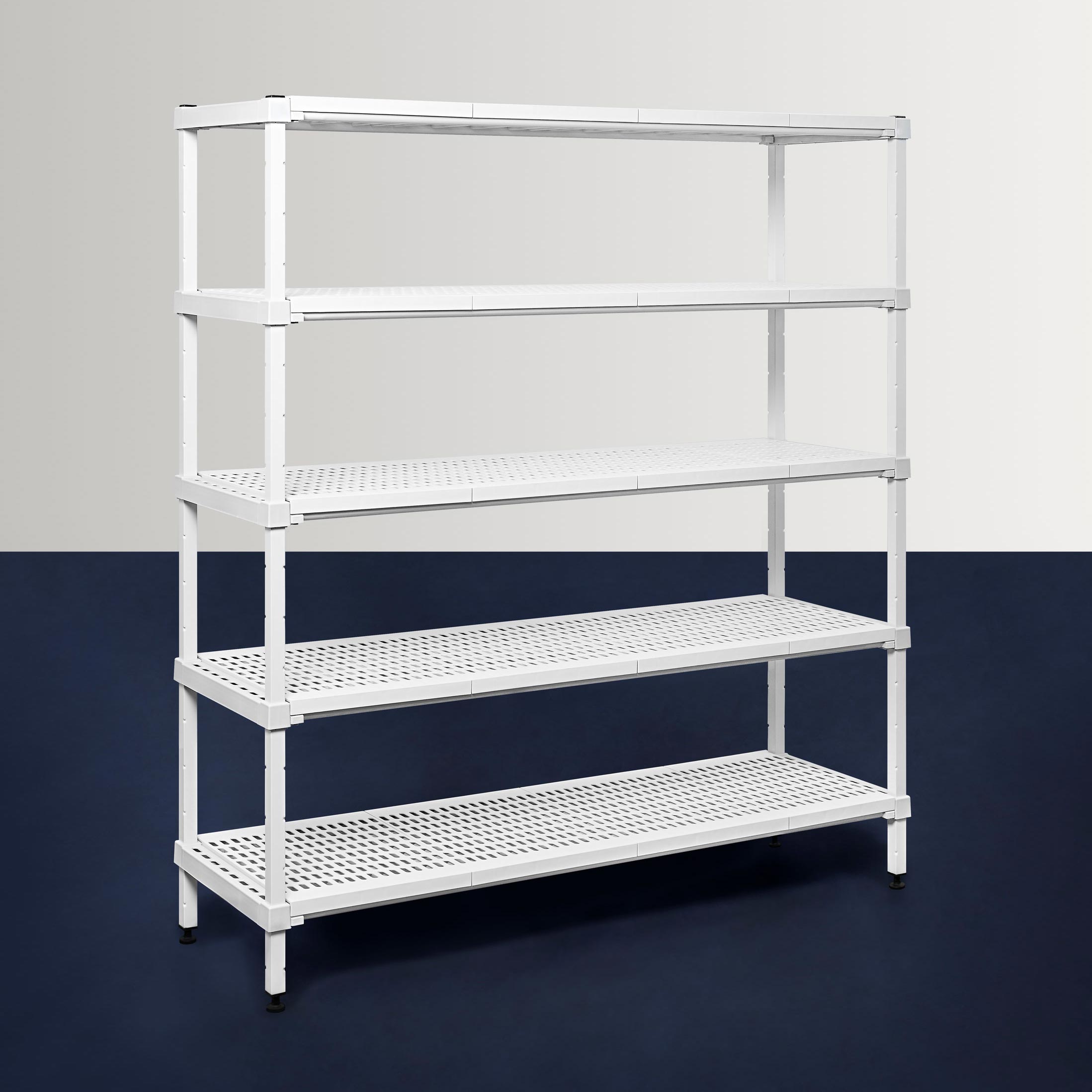

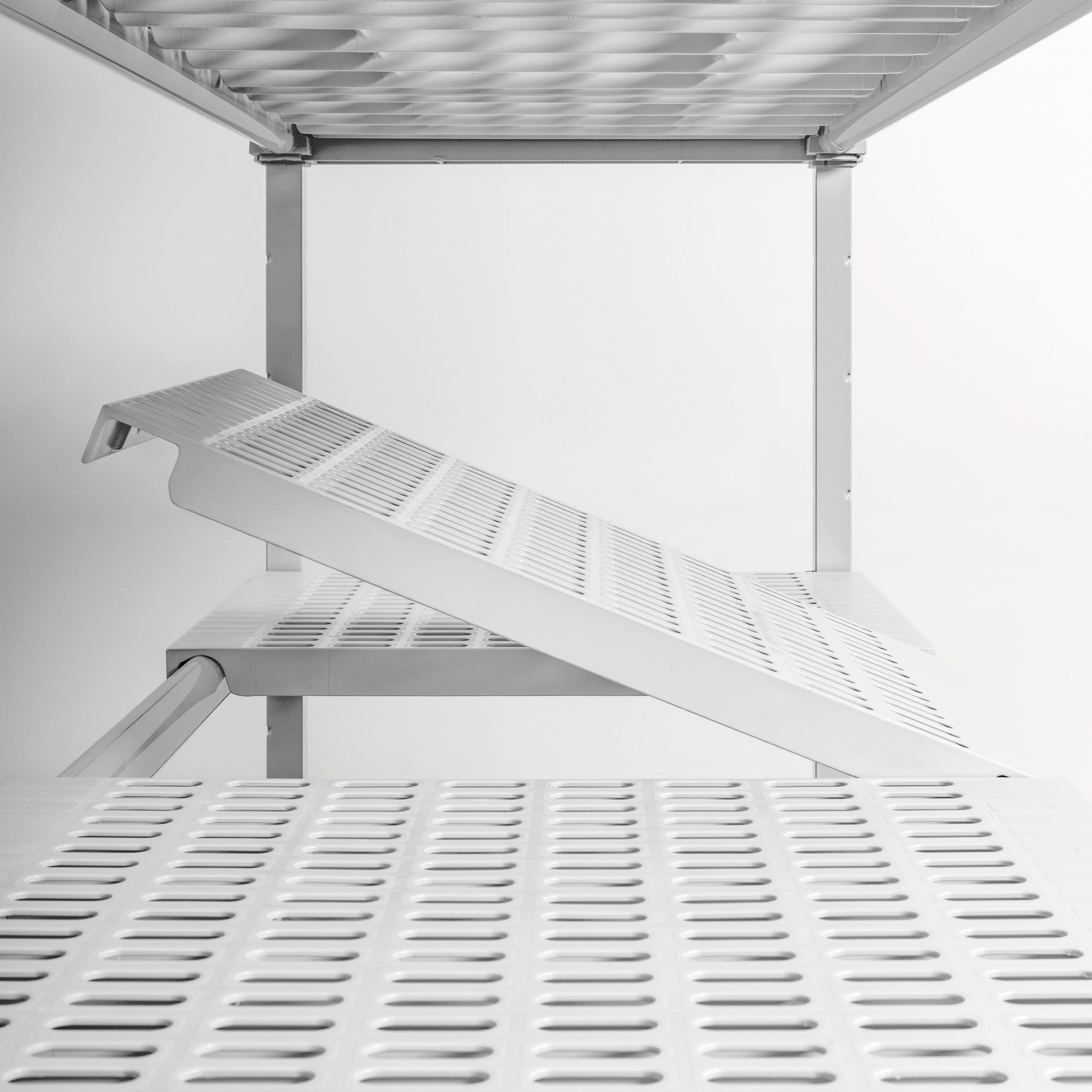

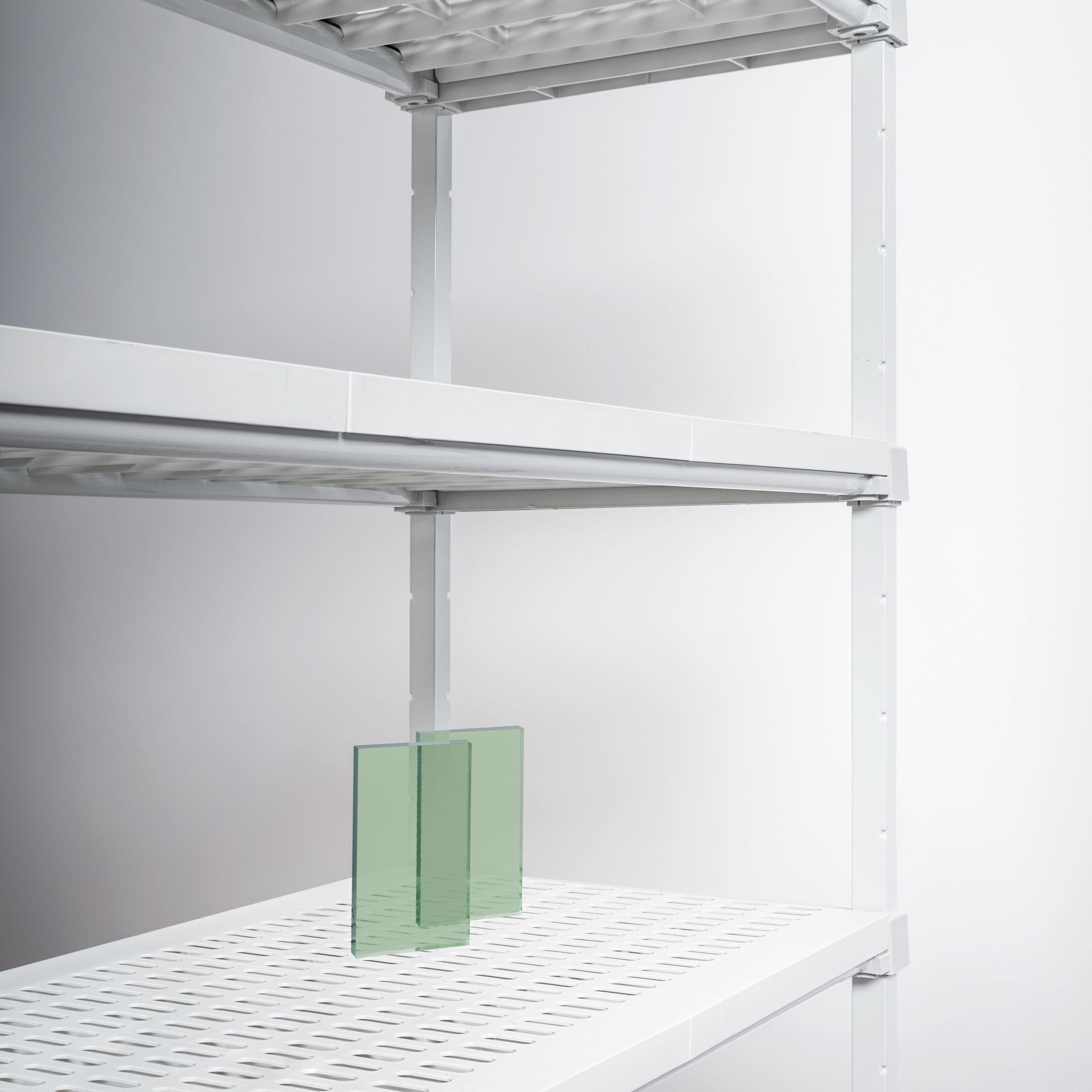

Eco Color
Powder-coated galvanized steel structure, depth bars and shelves both in polypropylene
Modular shelving units, made with steel tubular holding structure, painted with Light Grey (RAL 7035) non-toxic anti-scratch epoxide powder with 10 years anti-rust guarantee. Perforated polypropylene modular shelving units are easy to wash even in the dishwasher. Wheel-mounted options: on swivelling wheels, with or without breaks, for easy movement.
STRUCTURE
Tube Section: 30 x 30 x 1 mm
Depths: 300 - 400 - 500 - 600
Heights: 1400 - 1600 - 1800 - 2000 mm
More info about quick assembly +
SHELVES
Thickness: 40 mm
Lengths: from 600 to 2000 mm
Depths: 300 - 400 - 500 - 600 mm
More info about shelf types +
TOTAL LOAD 1000 kg
More info about load capacity +
